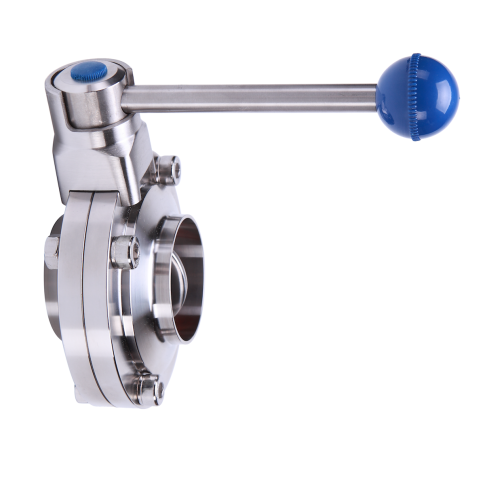

Butterfly Valve Butt Weld Ends (3A)

Name: Butterfly Valve Butt Weld Ends (3A)
SKU: sf-91100003
Price: 48.55 USD
Availability: InStock

Material: 304

Delivery time: 1 - 3 working days

The working temperature and pressure for our butterfly valves are -20^oC – 140^oC, max. 10bar.

Grouped product items
Butterfly Valve Butt Weld Ends (3A) 304 1" 25,4 mm 91100005	Qty 350 Pc. in stock Out of stock	US$48.55
Dimension SizeDN 25 Material1,4301/304 Weight in kg1,3 D28,0 mm D178,0 mm A50,0 mm H79,0 mm L137,5 mm KxK8.0 x 8.0 Surface Roughness <0.8UM
Butterfly Valve Butt Weld Ends (3A) 304 1 1/4" 31,75 mm 91100006	Qty 60 Pc. in stock Out of stock	US$50.84
Dimension SizeDN 32 Material1,4301/304 Weight in kg1,31 D34,0 mm D186,0 mm A50,0 mm H83,0 mm L137,5 mm KxK8.0 x 8.0 Surface Roughness <0.8UM
Butterfly Valve Butt Weld Ends (3A) 304 1 1/2" 38,1 mm 91100007	Qty 219 Pc. in stock Out of stock	US$54.54
Dimension SizeDN 40 Material1,4301/304 Weight in kg1,7 D40,0 mm D195,0 mm A50,0 mm H87,5 mm L137,5 mm KxK8.0 x 8.0 Surface Roughness <0.8UM
Butterfly Valve Butt Weld Ends (3A) 304 2" 50,8 mm 91100008	Qty 191 Pc. in stock Out of stock	US$65.64
Dimension SizeDN 50 Material1,4301/304 Weight in kg1,9 D52,0 mm D1108,0 mm A52,0 mm H93,0 mm L137,5 mm KxK10.0 x 10.0 Surface Roughness <0.8UM
